CATIA

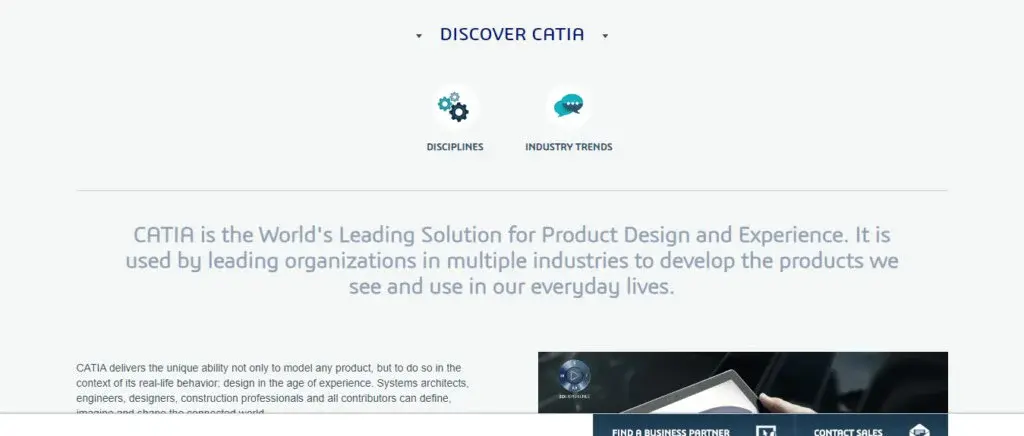

CATIA is one of the best product designing software that helps users design industry-standard products and make them a reality. The platform also delivers the unique ability to model any product, and they can design it in the context of its real-life working and behavior. The software is used by architects, engineers, designers, and other people to define, image, and shape the connected world.

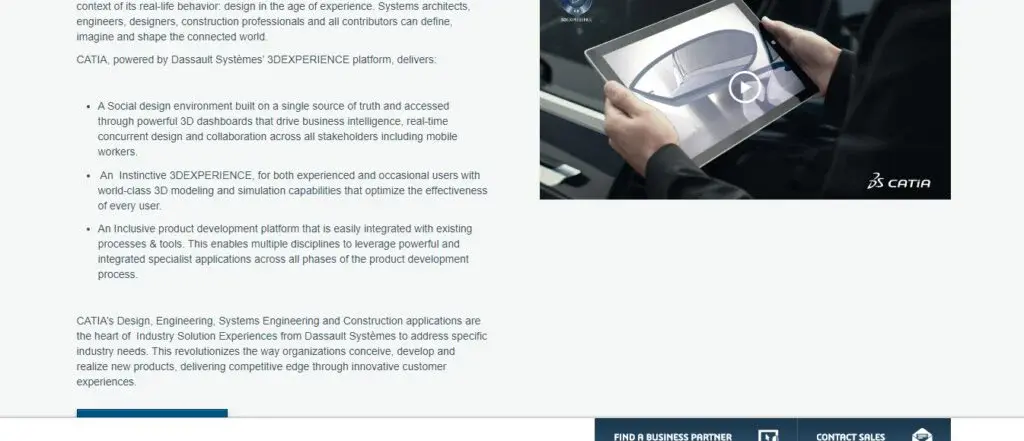

The platform also comes with a social design environment and offers a powerful dashboard with all the tools to design anything with business intelligence. Moreover, it helps in driving real-time concurrent design and offers collaboration to users across all stakeholders, including mobile workers.
It also provides a 3D experience to users to get the best 3D modeling and simulation capabilities to users to optimize every user’s effectiveness. CATIA also helps revolutionize the way organizations design and develop their new products by keeping track of their use in the real world. Lastly, it keeps the engineering sector to stay connected with designing one for better quality.
CATIA Alternatives
#1 See Electrical
See Electrical is a platform that allows users to create wiring diagrams. The platform is easy to use and enables users to easily design all the diagrams they want with an easy-to-use interface. Moreover, it comes with an automatic generating for components, cables, wires, and offers used contacts, etc.
The flexible support of the software helps users to maintain and create the entire electrical engineering process. Moreover, it has features that help in schematic design and electrical system design. Furthermore, users can harness the designs, and it has complete scalability and customization through which users can easily design and extend their projects according to their needs.
The solution can be integrated with many other systems to ensure that the work is seamless. Moreover, users can synchronize their mechanical designs with the electrical ones, and they can save time through its design.
#2 SOLIDWORKS Electrical
SOLIDWORKS Electrical is a platform that helps in simplifying the electrical schematic creation with an intuitive interface for faster design. The platform is used in various systems such as power systems, user controls, complex wiring, and harnesses. Moreover, it reduces the risks inherent in innovation and gets their products to market faster with less physical prototyping to reduce costs.
The platform is consistent and comes with powerful capabilities that are fully integrated with SolidWorks, and they can establish an integrated design early in the process. Moreover, users can streamline and simplify an array of tedious design tasks from the terminal block to contact cross-reference assignments. It comes with built-in libraries of symbols and manufacturer part information, and it can optimize design reuse.
SOLIDWORKS Electrical enables users to integrate electrical schematic design data with the 3D model of a machine, and they can determine the optimal lengths for wires and cables. Moreover, it empowers engineering teams with intuitive, powerful electrical design tools that can simplify the development of new ideas.
#3 AutoCAD Electrical
AutoCAD Electrical is a platform that allows users to create, modify, and document electrical control systems with an industry-specific toolset for the design. Moreover, it comes with an automatic report generation feature that allows users to generate and customize reports. Users can easily manage all of their electrical design projects, and they can reorder files for electrical drafting projects.
The platform comes with PDF publishing through which they can get all the diagrams in paper form. Moreover, it reduces errors with automatic numbers for wires and tags, and they can use a circuit builder for simple electrical design. It has a rich library through which users can select the schematic symbol designs for their use.
AutoCAD Electrical comes with real-time error checking through which users can catch problems before the build phase begins. Moreover, it comes with an enhanced preview and directs the component insertion feature. Lastly, users can use the coil and contact cross-referencing tool for keeping track of parent/child contacts in real-time.
#4 Designspark Electrical
Designspark Electrical is a powerful and comprehensive software that offers a range of capabilities to users to complete the designs in a fraction of time. The platform offers accuracy and precision in its end-to-end design process. Moreover, the software comes with seamless integration, and users can easily integrate it into their existing design workflows. It comes with free-of-charge tools that can help the user to bring their ideas to reality.
The platform offers features that can optimize the whole design process, and it can automate tasks such as numbering the wires or anything in the design to save time. Furthermore, it has extensive symbols and parts of libraries, allowing users to select the part and incorporate it into the design.
Designspark Electrical enables users to search for parts and components, and they can get access to the lifecycle status of millions of technical resources across RS products. Users can also review the products, and they can view everything from the records. Lastly, users can build their own part lists with ease through the software.
